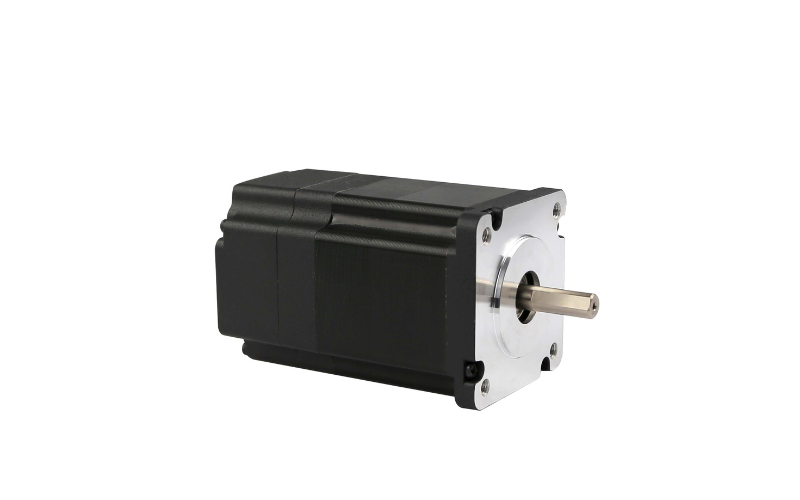

AW60BLF Series — 60mm Brushless DC Motor
The AW60BLF series is Apexwell's 60mm-frame, 48V brushless DC motor line, scaling from 100W to 400W of output power across four body lengths. This is the standard (open-loop) configuration — for applications requiring encoder feedback and real-time position correction, see our <a href="#">AW60BLF closed loop series</a>, which shares the same electrical performance in a slightly heavier, encoder-equipped package.
Shared Specifications (all models)
| Parameter | Value |
|---|---|
| Winding Configuration | Star (Y) |
| Hall Sensor Position | 120° |
| Insulation Class | Class B |
| Operating Temperature | -20°C to +50°C |
| Insulation Resistance | ≥100 MΩ (500 VDC) |
| Dielectric Strength | 700 VAC, 1 minute |
| Number of Poles | 8 |
| Number of Phases | 3 |
| Nominal Voltage | 48 VDC |
| Rated Speed | 3,000 RPM ±10% |
Model Comparison
| Model | Rated Torque | Rated Current | Output Power | Peak Torque | Peak Current | Body Length | Mass |
|---|---|---|---|---|---|---|---|
| AW60BLF78-430 | 0.32 N·m | 3.2 A | 100 W | 0.96 N·m | 9.6 A | 78 mm | 0.85 kg |
| AW60BLF99-430 | 0.65 N·m | 5.3 A | 200 W | 1.95 N·m | 15.9 A | 99 mm | 1.25 kg |
| AW60BLF120-430 | 0.95 N·m | 8.3 A | 300 W | 2.85 N·m | 24.9 A | 120 mm | 1.7 kg |
| AW60BLF141-430 | 1.28 N·m | 11.5 A | 400 W | 3.84 N·m | 34.5 A | 141 mm | 2.1 kg |
Torque constant ranges from 0.094 to 0.116 N·m/A; back-EMF constant ranges from 8.01 to 8.88 Vrms/kRPM. Rotor inertia scales from 0.31 to 1.01 kg·cm² with body length.
Typical Applications
With power scaling from 100W to 400W in a 60mm frame, the AW60BLF series fits conveyor drives, industrial pumps and fans, robotics base actuators, and general automation stations where open-loop speed control is sufficient and encoder feedback isn't required.
Why Choose the AW60BLF Series
Standardizing on the AW60BLF series covers a 4x power range (100W–400W) on one mounting footprint, reducing qualification effort as a product line scales. Because the standard and closed loop versions share identical motor windings and mounting dimensions, customers can start with the open-loop AW60BLF and upgrade to closed loop later without redesigning the mechanical interface. Custom shaft, connector, and lead-wire configurations are available on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
