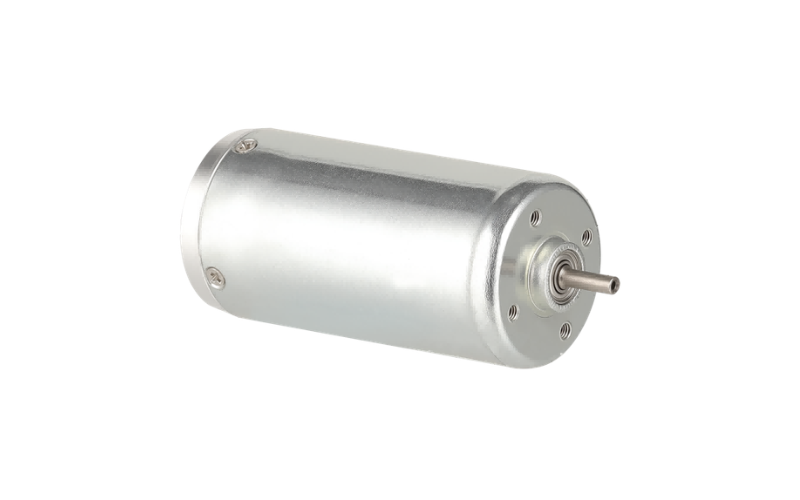

AW32BLY — 32mm Brushless DC Motor
The AW32BLY is Apexwell's 32mm-frame, 24V three-phase brushless DC motor, built with a 4-pole rotor for compact, continuous-duty applications. With a rated speed of 3,800 RPM and just 16W of output power in a slim cylindrical housing, it's one of the smallest-diameter motors in Apexwell's standard BLDC lineup — sized closer to a small DC motor than a typical BLDC frame.
Specifications
| Parameter | Value |
|---|---|
| Model | 32BLY65-238-001 |
| Number of Poles | 4 |
| Number of Phases | 3 |
| Winding Configuration | Star (Y) |
| Hall Sensor Position | 120° |
| Nominal Voltage | 24 VDC |
| Rated Speed | 3,800 RPM |
| Rated Torque | 0.04 N·m |
| Rated Current | 1.5 A |
| Output Power | 16 W |
| Peak Torque | 0.12 N·m |
| Peak Current | 4.5 A |
| Torque Constant | 0.03 N·m/A |
| Back-EMF Constant | 3 Vrms/kRPM |
| Rotor Inertia | 17.6 g·cm² |
| Body Length | 65 mm |
| Mass | 0.24 kg |
| Insulation Class | Class B |
| Operating Temperature | -20°C to +50°C |
| Insulation Resistance | ≥100 MΩ (500 VDC) |
| Dielectric Strength | 700 VAC, 1 minute |
Typical Applications
The AW32BLY's slim 32mm diameter and low power draw suit small fans, compact pumps, office equipment, medical device actuators, and other space-constrained mechanisms where a standard-diameter BLDC motor is too large to fit.
Why Choose the AW32BLY
At 32mm diameter, this is one of the most compact brushless motors in Apexwell's catalog — a brushless alternative for designs that would otherwise default to a brushed DC motor, offering longer service life and cleaner electrical performance without the brush wear and noise of a traditional DC motor. Custom voltage, speed, shaft dimensions, lead wire length, and mounting configurations are available on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
