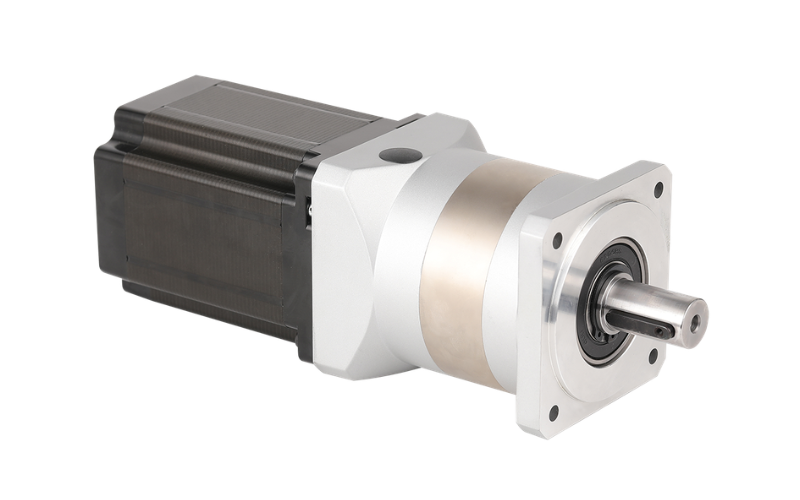

AW86HS Series — 86mm Stepper Motor with Precision Planetary Gearbox
The AW86HS series pairs Apexwell's NEMA 34 (86mm), 1.8° hybrid stepper motor with an HPS90 precision planetary gearbox, offering motor holding torque from 2.6 N·m to 11.0 N·m and rated output torque up to 100 N·m after reduction. With two available gear-train stages and reduction ratios from 4:1 to 70:1, backlash is held to ≤15 arcmin at no load, making this the highest-torque frame size in Apexwell's precision planetary gearmotor platform.
Shared Specifications (all models)
| Parameter | Value |
|---|---|
| Step Angle | 1.8° |
| Lead Wires | 4 (bipolar) |
| Gear Material | Metal |
| Output Bearing | Ball bearings |
| Max Radial Load | ≤1000 N |
| Max Shaft Axial Load | ≤800 N |
| Backlash (no load) | ≤15 arcmin |
| Noise | ≤55 dB |
Motor Model Comparison
| Model | Body Length | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Mass |
|---|---|---|---|---|---|---|---|
| AW86HSA68-4004A | 68 mm | 4.0 A | 0.60 Ω | 3.2 mH | 2.6 N·m | 1,574 g·cm² | 1.85 kg |
| AW86HSA80-4004A | 80 mm | 4.0 A | 1.00 Ω | 7.0 mH | 3.5 N·m | 2,120 g·cm² | 2.50 kg |
| AW86HSA80-6004A | 80 mm | 6.0 A | 0.50 Ω | 3.5 mH | 4.5 N·m | 2,120 g·cm² | 2.50 kg |
| AW86HSA98-5004A | 98 mm | 5.0 A | 0.58 Ω | 5.0 mH | 5.8 N·m | 3,110 g·cm² | 3.10 kg |
| AW86HSA118-5004A | 118 mm | 5.0 A | 0.75 Ω | 3.2 mH | 8.5 N·m | 3,970 g·cm² | 3.50 kg |
| AW86HSA118-6004A | 118 mm | 6.0 A | 0.60 Ω | 6.8 mH | 8.5 N·m | 3,970 g·cm² | 3.50 kg |
| AW86HSA128-5004A | 128 mm | 5.0 A | 0.60 Ω | 5.0 mH | 9.0 N·m | 4,540 g·cm² | 3.90 kg |
| AW86HSA158-6004A | 158 mm | 6.0 A | 0.75 Ω | 8.5 mH | 11.0 N·m | 5,820 g·cm² | 4.20 kg |
Two current ratings (5.0A and 6.0A) are offered at the 80mm and 118mm body lengths, letting the same body length be tuned for either higher torque or lower current draw.
HPS90 Precision Planetary Gearbox Specifications
| Parameter | 1-Stage | 2-Stage |
|---|---|---|
| Reduction Ratio | 4, 5, 7, 10 | 16, 20, 25, 28, 35, 40, 50, 70 |
| Gearbox Length (L1) | 110 mm | 132 mm |
| Rated Output Torque | 39–90 N·m | 70–100 N·m |
| Transmission Efficiency | 95% | 94% |
| Weight | 2.9 kg | 3.7 kg |
Momentary torque moment is rated at two times the rated allowable load across both stages. 12 reduction ratios are available in total (4 to 70:1), with rated output torque reaching 100 N·m at the highest 2-stage ratios.
Typical Applications
With backlash held to ≤15 arcmin and output torque up to 100 N·m, the AW86HS precision series fits heavy industrial robotic joints, precision rotary index tables, large-format CNC axes, and automated production machinery where high torque and positioning repeatability are both required and a servo motor system is more than the application needs.
Why Choose the AW86HS Precision Gearmotor
Backlash of ≤15 arcmin makes this series suitable for applications where positioning repeatability matters more than cost, even at the highest torque levels in Apexwell's stepper-planetary lineup. Eight body lengths and two current options at the most common lengths let designers dial in torque and current draw independently, and 12 reduction ratios across two gear-train stages extend that flexibility to output speed and torque. Noise is held to ≤55 dB despite the frame's size and torque capacity. For applications where backlash tolerance is less critical, Apexwell's standard planetary gearmotor line on the same frame offers a lower-cost alternative. Custom shaft configurations and encoder feedback are available on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
