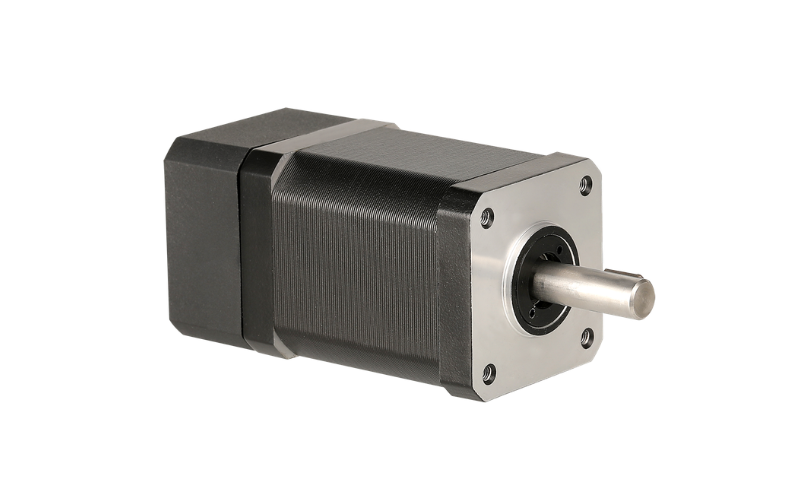

AW39HS Series — NEMA 16 Closed Loop Hybrid Stepper Motor
The AW39HS series is Apexwell's NEMA 16 (39mm) closed loop hybrid stepper motor line, pairing the motor with a built-in encoder for use with an external driver. Across six body lengths from 20mm to 54mm, holding torque scales from 0.086 N·m to 0.45 N·m — a 5.2x range — positioning this frame size between NEMA 14 (AW35HS) and NEMA 17 (AW42HS) for applications needing finer torque granularity than either neighboring platform offers.
Shared Specifications (all models)
| Parameter | Value |
|---|---|
| Step Angle | 1.8° |
| Step Accuracy | ±5% |
| Lead Wires | 4 (bipolar) |
| Insulation Class | Class B (130°C) |
| Temperature Rise | 50K Max |
| Ambient Temperature | -20°C to +50°C |
| Insulation Resistance | ≥100 MΩ (500 VDC) |
| Dielectric Strength | 500 VAC, 1 minute |
| Encoder Resolution | 500 / 512 / 1000 / 1024 / 2000 PPR (selectable) |
Model Comparison
| Model | Body Length | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Mass |
|---|---|---|---|---|---|---|---|
| AW39HS20-0474A | 20 mm | 0.47 A | 25.0 Ω | 22.1 mH | 0.086 N·m | 10.7 g·cm² | 0.12 kg |
| AW39HS34-0404A | 34 mm | 0.40 A | 30.0 Ω | 35.0 mH | 0.16 N·m | 26.5 g·cm² | 0.16 kg |
| AW39HS38-1004A | 38 mm | 1.00 A | 2.0 Ω | 3.7 mH | 0.23 N·m | 37.0 g·cm² | 0.21 kg |
| AW39HS44-1004A | 44 mm | 1.00 A | 6.0 Ω | 14.8 mH | 0.45 N·m | 46.0 g·cm² | 0.26 kg |
| AW39HS47-1004A | 47 mm | 1.00 A | 7.8 Ω | 17.0 mH | 0.45 N·m | 41.0 g·cm² | 0.30 kg |
| AW39HS54-1504A | 54 mm | 1.50 A | 2.3 Ω | 5.8 mH | 0.45 N·m | 55.6 g·cm² | 0.40 kg |
Closed Loop Feedback
Every AW39HS motor integrates a selectable-resolution encoder (500–2000 PPR) as standard, letting the driver verify actual rotor position in real time rather than assuming the commanded pulses were followed. See our article on why closed loop stepper motors are replacing traditional steppers to evaluate whether a closed loop configuration makes sense for your design.
Typical Applications
The AW39HS's NEMA 16 footprint suits small CNC engraving axes, camera and lens positioning systems, medical pump actuators, and robotics joints where NEMA 14 doesn't have enough torque and NEMA 17 is larger than the design needs — with closed loop feedback removing the risk of skipped steps under load.
Why Choose the AW39HS Series
Six body lengths on one NEMA 16 mounting interface give a 5.2x torque range without changing the mechanical footprint — one of the widest torque spreads in Apexwell's small-frame stepper lineup. Custom shaft length, connector type, and encoder resolution are available on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
