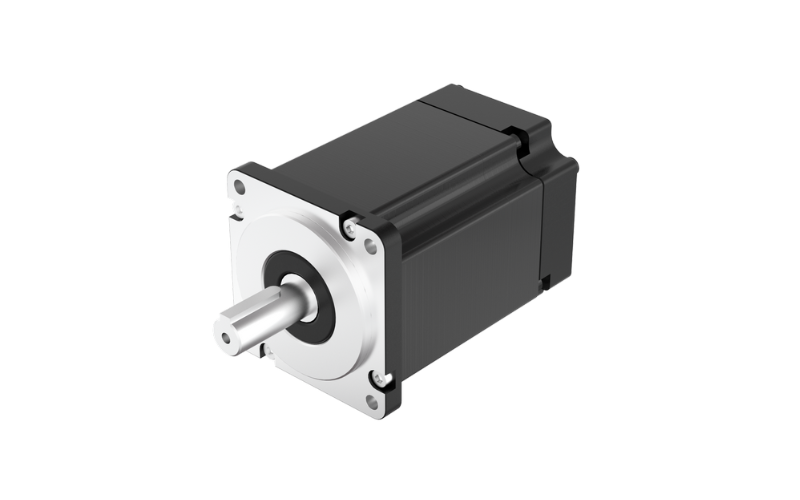

AW60SV — 60mm Low-Voltage Integrated Servo Motor
The Apexwell AW60SV is a 60mm low-voltage integrated servo motor designed for compact motion control systems. It integrates the motor and servo control structure into a compact solution and is available in 24V 200W and 48V 400W configurations, with a rated speed of 3000 RPM.
Key Features
60mm integrated servo motor design
Low-voltage 24V and 48V configurations
200W and 400W output power options
Rated speed of 3000 RPM ±10%
High peak torque capability
3-phase motor with 10 poles
Star winding connection
Class B insulation
Compact motor body
Customizable electrical and mechanical specifications
Model Comparison
| Model | Nominal Voltage | Rated Speed | Rated Torque | Rated Current | Output Power | Peak Torque | Body Length | Weight |
|---|---|---|---|---|---|---|---|---|
| AW60SV17-230 | 24VDC | 3000 RPM ±10% | 0.65 N·m | 11A | 200W | 1.95 N·m | 82.5 mm | 0.9 kg |
| AW60SV35-430 | 48VDC | 3000 RPM ±10% | 1.27 N·m | 11A | 400W | 3.81 N·m | 101 mm | 1.2 kg |
Shared Specifications
| Parameter | Specification |
|---|---|
| Product Type | Low-Voltage Integrated Servo Motor |
| Frame Diameter | 60mm |
| Number of Poles | 10 |
| Number of Phases | 3 |
| Winding Type | Star |
| Rated Speed | 3000 RPM ±10% |
| Insulation Class | Class B |
| Insulation Resistance | ≥100MΩ at 500VDC |
| Dielectric Strength | 700V AC for 1 minute |
| Ambient Temperature | -20°C to +50°C |
Torque and Performance
The AW60SV series provides two power configurations for different low-voltage motion requirements. The 24V AW60SV17-230 delivers 200W with 0.65 N·m rated torque and 1.95 N·m peak torque, while the 48V AW60SV35-430 delivers 400W with 1.27 N·m rated torque and 3.81 N·m peak torque.
Compact Integrated Design
With a 60mm motor diameter, the AW60SV provides a compact integrated servo motor solution for applications where installation space and low-voltage operation are important. The two standard motor body lengths are 82.5mm and 101mm.
Customization Options
Apexwell supports customization of the AW60SV series according to application requirements. Customizable specifications include:
Motor voltage
Rated speed
Output shaft dimensions
Lead wire length
Mounting pilot dimensions
Mounting hole dimensions
Additional options such as planetary gearboxes and encoders can also be configured according to customer requirements.
Typical Applications
The AW60SV is suitable for compact low-voltage motion control systems requiring an integrated servo motor solution. Depending on the required voltage and power, customers can select the 24V 200W or 48V 400W configuration.
Typical application requirements may include:
Compact motion control equipment
Low-voltage automation systems
Precision positioning equipment
OEM motion systems
Space-constrained machinery
Why Choose Apexwell AW60SV
The AW60SV combines a compact 60mm motor format with low-voltage operation and multiple power configurations. Its customizable electrical and mechanical parameters make it suitable for OEM applications requiring a tailored integrated servo motor solution.
For application-specific requirements, Apexwell can customize motor voltage, speed, shaft dimensions, lead wires, mounting dimensions, and optional gearbox or encoder configurations.
