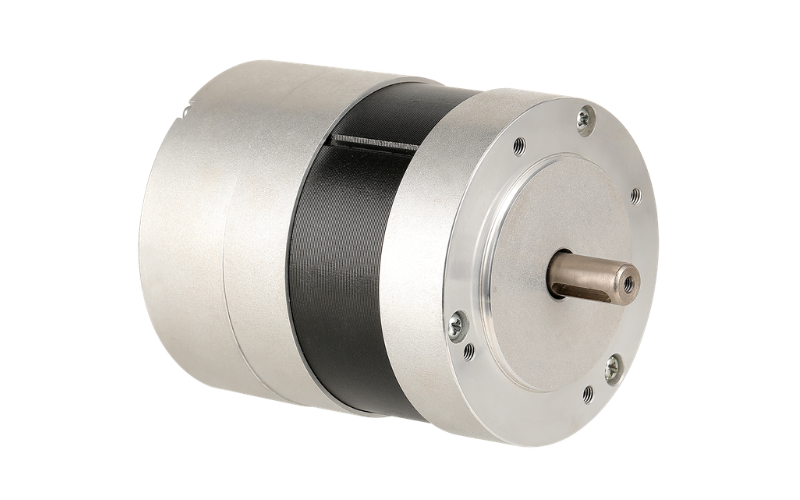

AW90BLY Series — 90mm BLDC Motor with Integrated Driver
The AW90BLY is Apexwell's 90mm-diameter brushless DC motor with the driver built into the motor housing — no external driver required. At 48V and 69W rated output power, it runs at a lower 1,100 RPM rated speed than Apexwell's smaller integrated-driver frames, and is controlled through a separate power and control connector with analog speed input and independent CW/CCW direction wires.
Specifications
| Parameter | Value |
|---|---|
| Model | AW90BLYI75-411 |
| Winding Configuration | Star (Y) |
| Number of Poles | 4 |
| Number of Phases | 3 |
| Nominal Voltage | 48 VDC |
| Rated Speed | 1,100 RPM |
| Rated Torque | 0.6 N·m |
| Rated Current | 2.5 A |
| Output Power | 69 W |
| Peak Torque | 1.8 N·m |
| Peak Current | 7.5 A |
| Torque Constant | 0.27 N·m/A |
| Back-EMF Constant | 21.9 Vrms/kRPM |
| Rotor Inertia | 2.1 kg·cm² |
| Body Length | 75 mm |
| Mass | 2.0 kg |
| Insulation Class | Class B |
| Ambient Temperature | -20°C to +50°C |
| Insulation Resistance | ≥100 MΩ (500 VDC) |
| Dielectric Strength | 700 VAC, 1 minute |
Control & Wiring
The AW90BLY separates power and control onto two connectors. The power connector carries VCC (red) and GND (black) on AWG20 wire. The control connector, on lighter AWG26 wire, carries SPEED (orange, analog speed command), CCW (yellow) and CW (white) as independent direction-select inputs, EN (red, enable), and GND (black). This gives a host controller analog speed control and independent direction lines rather than the PWM-plus-single-direction-pin scheme used on Apexwell's smaller integrated-driver frames.
Typical Applications
With 69W of output at a lower 1,100 RPM rated speed, the AW90BLY fits direct-drive fans and blowers, larger pumps, and low-speed industrial equipment where a higher-torque, lower-RPM motor is preferred over gearing down a faster motor.
Why Choose the AW90BLY
Folding the driver into the motor housing removes the need for a separate controller board, cutting both space and integration time. Separate power and control connectors keep low-current control signals isolated from the higher-current power wiring, and independent CW/CCW inputs plus an enable line give a host controller straightforward on/off and direction control without a communication protocol. Voltage, speed, shaft size, lead wire length, mounting spigot, and mounting holes can all be customized on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
