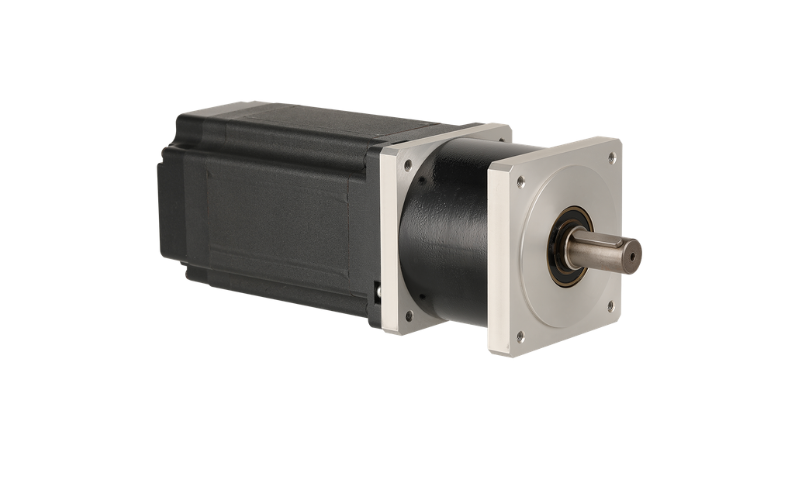

AW86BLF Series — 86mm BLDC Motor with Precision Planetary Gearbox
The AW86BLF series pairs Apexwell's 86mm-diameter, 48V brushless DC motor with an HPS90-L1/L2MB precision planetary gearbox, scaling rated output power from 130W to 750W across five body lengths. With two gear-train stages, 13 total reduction ratios from 3:1 to 70:1, and up to 100 N·m of rated output torque, this is the highest-torque frame in Apexwell's precision BLDC planetary-gearmotor platform.
Shared Motor Specifications (all models)
| Parameter | Value |
|---|---|
| Winding Configuration | Star (Y) |
| Hall Sensor Position | 120° |
| Insulation Class | Class B |
| Ambient Temperature | -20°C to +50°C |
| Insulation Resistance | ≥100 MΩ (500 VDC) |
| Dielectric Strength | 700 VAC, 1 minute |
| Number of Poles | 8 |
| Number of Phases | 3 |
| Nominal Voltage | 48 VDC |
| Rated Speed | 3,000 RPM ±10% |
Motor Model Comparison
| Model | Rated Torque | Rated Current | Output Power | Peak Torque | Peak Current | Body Length | Mass |
|---|---|---|---|---|---|---|---|
| AW86BLF75-430 | 0.41 N·m | 3.7 A | 130 W | 1.23 N·m | 11.1 A | 75 mm | 1.5 kg |
| AW86BLF90-430 | 0.80 N·m | 6.8 A | 250 W | 2.40 N·m | 20.4 A | 90 mm | 2.0 kg |
| AW86BLF105-430 | 1.30 N·m | 11.3 A | 400 W | 3.90 N·m | 33.9 A | 105 mm | 2.5 kg |
| AW86BLF115-430 | 1.70 N·m | 14.5 A | 500 W | 5.10 N·m | 43.5 A | 115 mm | 3.0 kg |
| AW86BLF145-430 | 2.40 N·m | 19.0 A | 750 W | 7.20 N·m | 57.0 A | 145 mm | 4.0 kg |
Torque constant ranges from 0.108 to 0.117 N·m/A; back-EMF constant ranges from 8.38 to 9.66 Vrms/kRPM. Rotor inertia scales from 0.81 to 3.04 kg·cm² with body length.
Precision Planetary Gearbox — General Parameters
| Parameter | Value |
|---|---|
| Gear Material | Metal |
| Radial Load (at 10mm) | ≤1000 N |
| Shaft Axial Load | ≤800 N |
| Backlash | ≤10 arcmin (1-stage) / ≤15 arcmin (2-stage) |
| Noise | ≤55 dB |
| Protection Level | IP54 |
| Life Span | 20,000 hours |
| Working Temperature | -20°C to +150°C |
HPS90-L1/L2MB Precision Planetary Gearbox Specifications
| Parameter | 1-Stage | 2-Stage |
|---|---|---|
| Reduction Ratio | 3, 4, 5, 7, 10 | 16, 20, 25, 28, 35, 40, 50, 70 |
| Gearbox Length (L1) | 110 mm | 132 mm |
| Rated Output Torque | 39–90 N·m | 70–100 N·m |
| Transmission Efficiency | 96% | 94% |
| Weight | 2.9 kg | 3.7 kg |
Momentary torque moment is rated at two times the rated output torque across both stages. 13 reduction ratios are available in total (3 to 70:1), with rated output torque reaching 100 N·m at the highest 2-stage ratios.
Wiring
Each AW86BLF motor exits with a 3-core sheathed power cable for the U/V/W windings and a separate 5-core shielded Hall sensor cable (+5VDC, GND, HU, HV, HW) at a 120° Hall electrical angle for standard 6-step commutation.
Typical Applications
With backlash as tight as ≤10 arcmin, an IP54 protection rating, and gearbox torque up to 100 N·m, the AW86BLF precision series fits heavy industrial robotic joints, precision rotary index tables, large-format CNC axes, and automated production machinery where high torque and positioning repeatability are both required.
Why Choose the AW86BLF Precision Gearmotor
Backlash as tight as ≤10 arcmin makes this series suitable for applications where positioning repeatability matters more than cost, even at the highest torque levels in Apexwell's BLDC planetary lineup. The IP54 rating and -20°C to +150°C working range extend where the gearbox can be used compared with an open, standard-tolerance planetary unit, and a 20,000-hour rated life supports continuous-duty applications. Thirteen reduction ratios across two gear-train stages let torque and speed be tuned within a single mounting footprint. Custom shaft configurations and encoder feedback are available on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
