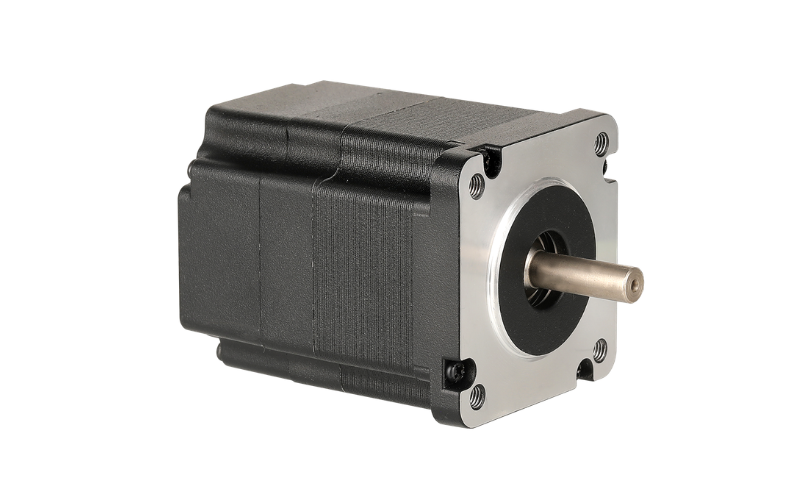

AW60BLF Series — 60mm BLDC Motor with Planetary Gearbox
The AW60BLF series pairs Apexwell's 60mm-diameter, 48V brushless DC motor with an M60GXR planetary gearbox, scaling rated output power from 100W to 400W across four body lengths. The gearbox platform is numerically identical to the AW57BLF's M56GXR — same 14 reduction ratios from 3.6:1 to 326:1 and the same up-to-60 N·m maximum permissible torque — so this line delivers the same gearbox output from a higher-voltage, higher-power motor stack.
Shared Motor Specifications (all models)
| Parameter | Value |
|---|---|
| Winding Configuration | Star (Y) |
| Hall Sensor Position | 120° |
| Insulation Class | Class B |
| Ambient Temperature | -20°C to +50°C |
| Insulation Resistance | ≥100 MΩ (500 VDC) |
| Dielectric Strength | 700 VAC, 1 minute |
| Number of Poles | 8 |
| Number of Phases | 3 |
| Nominal Voltage | 48 VDC |
| Rated Speed | 3,000 RPM ±10% |
Motor Model Comparison
| Model | Rated Torque | Rated Current | Output Power | Peak Torque | Peak Current | Body Length | Mass |
|---|---|---|---|---|---|---|---|
| AW60BLFA78-430 | 0.32 N·m | 3.2 A | 100 W | 0.96 N·m | 9.6 A | 78 mm | 0.85 kg |
| AW60BLFA99-430 | 0.65 N·m | 5.3 A | 200 W | 1.95 N·m | 15.9 A | 99 mm | 1.25 kg |
| AW60BLFA120-430 | 0.95 N·m | 8.3 A | 300 W | 2.85 N·m | 24.9 A | 120 mm | 1.70 kg |
| AW60BLFA141-430 | 1.28 N·m | 11.5 A | 400 W | 3.84 N·m | 34.5 A | 141 mm | 2.10 kg |
Torque constant ranges from 0.094 to 0.116 N·m/A; back-EMF constant ranges from 8.01 to 8.88 Vrms/kRPM. Rotor inertia scales from 0.31 to 1.01 kg·cm² with body length.
Planetary Gearbox — General Parameters
| Parameter | Value |
|---|---|
| Gear Material | Metal (powder metal), optional |
| Radial Load (at 10mm) | ≤20.0 kgf |
| Shaft Axial Load | ≤12.0 kgf |
| Radial Play of Shaft | ≤0.05 mm |
| Thrust Play of Shaft | ≤0.3 mm |
| Backlash (1-stage, no load) | ≤3° |
| Max Shaft Press-Fit Force | ≤320 N |
M60GXR Planetary Gearbox Specifications
| Parameter | 1-Stage | 2-Stage | 3-Stage | 4-Stage |
|---|---|---|---|---|
| Reduction Ratio | 3.6, 4.3 | 13, 15, 18 | 47, 55, 65, 77 | 168, 198, 234, 276, 326 |
| Gearbox Length (L1) | 40.5 mm | 51.8 mm | 63.1 mm | 74.4 mm |
| Rated Output Torque | 2.0 N·m | 8.0 N·m | 16.0 N·m | 20.0 N·m |
| Max Torque Moment | 6.0 N·m | 25.0 N·m | 50.0 N·m | 60.0 N·m |
| Transmission Efficiency | 80% | 70% | 60% | 50% |
| Weight | 500 g | 600 g | 700 g | 850 g |
Fourteen reduction ratios are available in total (3.6 to 326:1) — identical to the AW57BLF gearbox, since both series share the same underlying gearbox platform.
Wiring

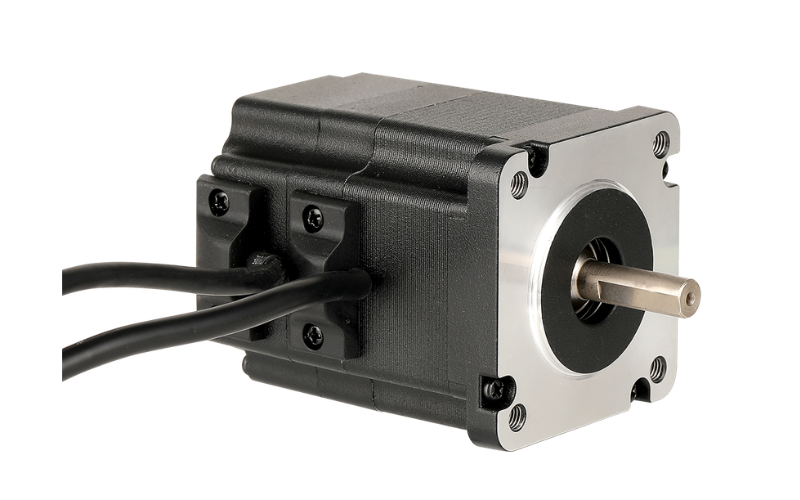

Each AW60BLF motor exits with a 3-core sheathed power cable for the U/V/W windings and a separate 5-core shielded Hall sensor cable (+5VDC, GND, HU, HV, HW) at a 120° Hall electrical angle for standard 6-step commutation.
Typical Applications
With output power from 100W to 400W at 48V and reduction ratios up to 326:1, the AW60BLF series fits heavier conveyor drives, industrial pump and valve actuation, AGV/AMR drive wheels, and automation equipment where the AW57BLF's torque range fits the gearbox requirement but the driving application calls for a higher-power motor stack.
Why Choose the AW60BLF Gearmotor
Fourteen reduction ratios across four gear-train stages let one motor selection be tuned across a wide speed/torque window without redesigning the mechanical interface. Because the gearbox platform is shared with the AW57BLF, a design can move between the two motor frames without changing gearbox dimensions or ratio options. Custom shaft configurations and encoder feedback are available on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
