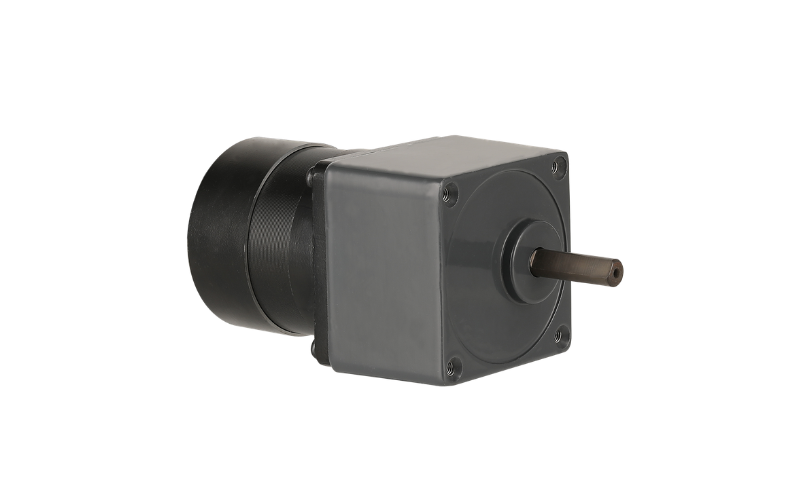

AW57BLY Series — 57mm BLDC Motor with Eccentric Gearbox
The AW57BLY series combines Apexwell's 57mm-frame, 4-pole brushless DC motor with the same 2GN-K eccentric gearbox used across our 57mm gearmotor line, scaling from 17W to 140W across five body lengths. Compared to the 8-pole AW57BLF motor, the AW57BLY's 4-pole design suits applications prioritizing smoother low-speed torque delivery within the same compact 57mm frame and gearbox options.
Shared Motor Specifications (all models)
| Parameter | Value |
|---|---|
| Winding Configuration | Star (Y) |
| Hall Sensor Position | 120° |
| Insulation Class | Class B |
| Operating Temperature | -20°C to +50°C |
| Insulation Resistance | ≥100 MΩ (500 VDC) |
| Dielectric Strength | 700 VAC, 1 minute |
| Number of Poles | 4 |
| Number of Phases | 3 |
| Rated Speed | 3,000 RPM ±10% |
Motor Model Comparison
| Model | Voltage | Rated Torque | Rated Current | Output Power | Peak Torque | Body Length | Mass |
|---|---|---|---|---|---|---|---|
| AW57BLY45-230 | 24V | 0.055 N·m | 1.2 A | 17 W | 0.165 N·m | 45 mm | 0.40 kg |
| AW57BLY55-230 | 24V | 0.11 N·m | 2.2 A | 35 W | 0.33 N·m | 55 mm | 0.50 kg |
| AW57BLY75-230 | 24V | 0.22 N·m | 4.1 A | 70 W | 0.66 N·m | 75 mm | 0.72 kg |
| AW57BLY95-230 | 48V | 0.33 N·m | 5.9 A | 105 W | 0.99 N·m | 95 mm | 1.0 kg |
| AW57BLY115-230 | 48V | 0.45 N·m | 7.7 A | 140 W | 1.35 N·m | 115 mm | 1.24 kg |
2GN-K Eccentric Gearbox Specifications
| Reduction Ratio | 3–15 | 18–250 |
|---|---|---|
| Gearbox Length (L1) | 32 mm | 42 mm |
| Max Permissible Torque | 1.2–5.4 N·m | 7–24.5 N·m |
Same 22-ratio gearbox range as the AW57BLF series (3:1 to 250:1), letting both motor types share gearbox tooling and spare parts.
Typical Applications
Lower rated torque per model than the AW57BLF line makes the AW57BLY gearmotor well suited to lighter-duty positioning tasks — small valve actuators, instrument positioning, light conveyor indexing, and equipment where smooth low-speed motion matters more than peak torque density.
Why Choose the AW57BLY Gearmotor
Sharing the same 2GN-K gearbox platform as the AW57BLF series means customers standardizing on Apexwell's 57mm gearmotor line can mix motor types across a product family while keeping gearbox part numbers, mounting, and spare inventory common. Custom shaft configurations and encoder options are available on request.
We can customize the electrical parameters of the motor and geometric dimensions such as the motor output shaft size according to customer requirements. Accessories including pulleys, eccentric gearboxes, planetary gearboxes and encoders can also be added. For more products and detailed specifications, please download the product catalog from the Download Center.
